01
Industrial processing
Equipment and exposed process surfaces operating around liquids, deposits and repeated cleaning.
←All Applications
Coating Application
Industrial Solutions
Perform
Industrial Surface Engineering
Engineered coating technologies for equipment, components and infrastructure operating across demanding industrial environments.
Industrial Applications
Built for application-led development.
From process equipment to exposed infrastructure, METASORB develops surface behaviour around the material, environment and operating requirement.
Manufacturing & process equipment
Chemical handling & processing
Infrastructure & environmental exposure
02

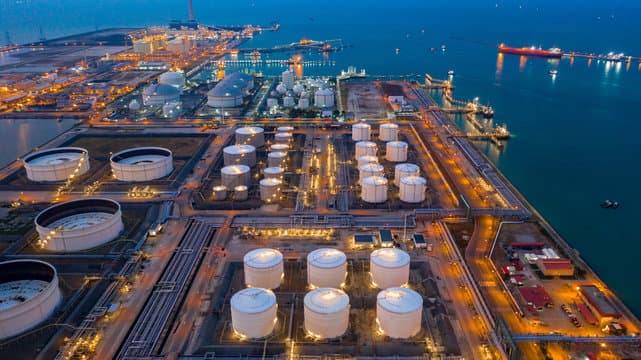

Chemical handling
Surfaces exposed to solvents, oils and aggressive chemical environments.
03
Manufacturing
Components, tooling and machinery exposed to contamination and wear.
04

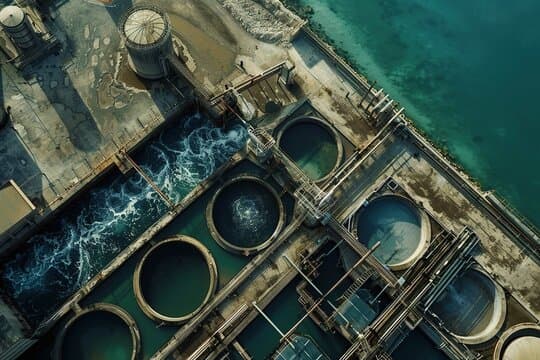

Infrastructure
Outdoor assets and surfaces exposed to weathering and environmental degradation.
05
Marine & offshore
Equipment and structural surfaces operating around saltwater, fouling and harsh conditions.
Why Surface Engineering Matters
Match the surface problem to the performance requirement.
Industrial surface conditions vary, but the engineering logic remains the same: identify the failure mechanism, select the required surface behaviour, then validate performance against the operating environment.
01
Problem
Water & wetting
Water exposure and surface wetting can contribute to fouling, contamination and degradation.
Surface response
Hydrophobic / super-hydrophobic surface behaviour.
Reduced liquid interaction and potentially easier cleaning.
Validated result
160–163°
Water contact angle
02
Problem
Oils & aggressive chemicals
Industrial surfaces may be exposed to oils, solvents and chemically aggressive liquids.
Surface response
Omniphobicity and chemical resistance.
Designed for chemically demanding operating environments.
Validated result
Stable in:
Chloroform · THF · acetone · xylene
03
Problem
Fouling & contamination
Biological and organic adhesion can increase cleaning requirements and operational burden.
Surface response
Anti-fouling / antimicrobial surface functionality.
Reduced adhesion of contaminants and biological matter.
Validated result
Up to 99.94%
Reduction in bacterial adhesion
04
Problem
Wear & environmental exposure
Abrasion and long-term environmental exposure can degrade otherwise serviceable surfaces.
Surface response
Durable thin-film surface protection.
Functional surface protection without bulky coating layers.
Validated result
500+ cycles
ASTM D4060 abrasion testing
12-month outdoor durability
Formulation Options
Formulations matched to operating requirements
A concise view of the existing METASORB coating platform for industrial application development.
Super-hydrophobic
ONYX
Water-repellent protection for exposed industrial and infrastructure surfaces.
160–163° water contact angle
<10° sliding angle
500+ abrasion cycles (ASTM D4060)
12-month outdoor durability
Antimicrobial
EMERALD
Anti-fouling and antimicrobial surface behaviour for contamination-sensitive settings.
99.94% reduction in Gram-positive adhesion
99.85% reduction in Gram-negative adhesion
4 Log₁₀ sustained performance over 9 days
11-fold reduction in viral surface contamination
Super-omniphobic
OBSIDIAN
Liquid repellency for chemically demanding and oil-contaminated environments.
Repels liquids down to 23.8 mN/m
Stable in chloroform, THF, acetone and xylene
Tunable wetting via surface chemistry
Application-specific
CUSTOM FORMULATION
Surface chemistry can be tuned around the substrate, operating environment and performance requirements of a specific application.
Tailored wetting behaviour
Substrate-specific formulation
Chemical and environmental compatibility
Application-specific testing and validation
Commercial Pathway
From requirement to qualified application.
A structured stage-gate process used to move customer applications from engineering definition through validation, commercial feasibility and deployment.
01
Engineering Inputs
Define the component, operating environment, interfaces and customer success criteria.
02
Application Feasibility
Confirm substrate compatibility, application method, masking, thickness and cure pathway.
03
Verification & Validation
Agree test standards, controls, metrics and pass/fail criteria.
04
Commercial Feasibility
Assess process fit, coating consumption, lifecycle value and scale economics.
05
Iterative Application Development
Coat, test, inspect, modify and validate a customer-specific application specification.
Coupon testing→
Component validation→
Full-scale asset trial→
Operational trial→
Qualified application→
Commercial deployment
Industrial Partnerships
Explore industrial applications for METASORB coating technology.
Discuss the substrate, operating environment and validation requirements of your industrial application.
